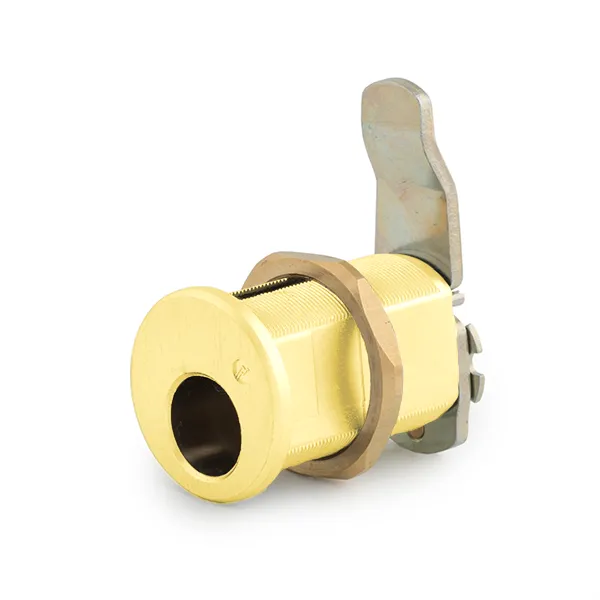

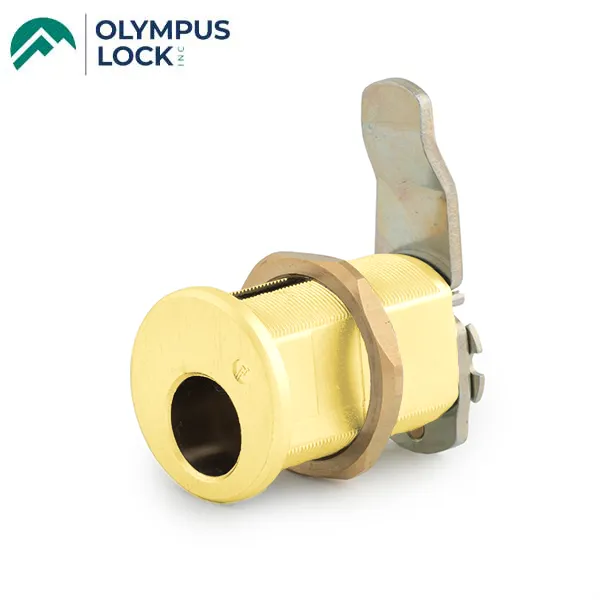

LC Series: Less Cylinder Cam Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cam lock
- Easily rekeyable via rear set screws
- Will accept other manufacturer's Schlage compatible deadbolt or key-in-knob cylinders
- ANSI/BHMA: E07261
- Barrel diameter: 1-1/8
- Across flats: 7/8"
- Mounting cutout: 1-5/32"
- Max. material thickness: 1-3/8"
Specifications:
| Rekeyable | Easily rekeyable via set screw on back of lock body |
| Cylinder diameter | 1-1/8" |
| Across flats |
7/8" |
| Max. material thickness | 1-3/8" |
| Min. material thickness | 0.08" |
| Body | Zinc die cast |
| Functions | Includes parts for key-retaining or nonkey-retaining |
| Finish | Polished Brass |
| Cylinder | Not included |
| Accepts |
Schlage compatible key-in-knob cylinders including ILCO cylinder #1599. This lock does not accept Medeco cylinder. |
| Includes | All parts necessary to work with other manufacturers' Schlage compatible cylinders. |
| Compatible electronic cylinders | ASSA CLIQ or VIDEX CyberLock key-in-knob cylinders. |
